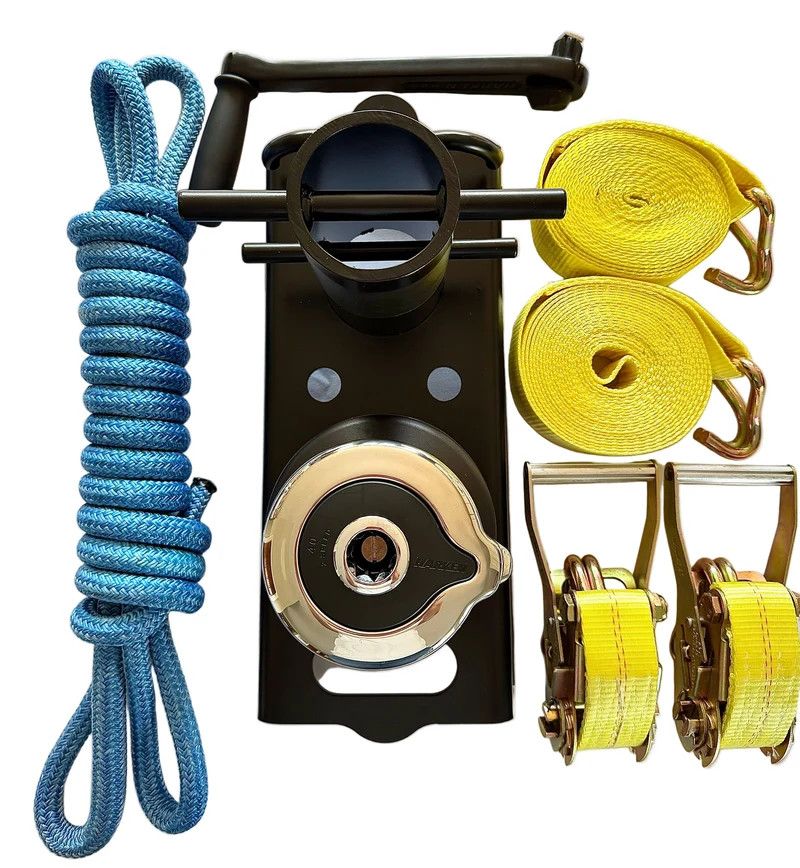

Hold Fast XL Rigging System

Designed to combine the mechanical advantage of a Harken Radial 40 self-tailing winch with the strength and stability of a fixed bollard, the XL offers simultaneous lifting and lowering in one compact, rugged package.

Whether you’re tackling heavy rigging, large removals, or high-demand job sites, the XL is your go-to tool for safe, smooth, and controlled rope management.

Kit includes:

• 1) Hold Fast XL Rope Management System
• 1) Dead eye sling (Color Varies)
• 2) Ratcheting strap
• 1) Winch Handle

Patent Pending.

Details

• Developed for heavier rigging applications requiring increased lifting power and control
• Integrates a Harken Radial 40 dual-speed self-tailing winch with a fixed bollard mounted on a compact steel rigging plate
• Allows simultaneous lifting and lowering operations from one streamlined system
• Accepts either one rope or two separate ropes simultaneously for increased rigging versatility
• Strategically placed fairleads help properly align running lines while supporting additional rigging accessories
• Dual-speed self-tailing winch delivers approximately 13.5:1 and 39.9:1 mechanical advantage ratios for smooth and controlled lifting operations
• The dual-speed winch allows for both fast line take-up and high-power lifting control
• Powder-coated finish for durability and corrosion resistance
• Special bollard coating helps ropes run smoothly and cleanly during lowering operations
• Compact profile fits inside a standard rope bag while delivering increased rigging capability
• Mounts vertically or horizontally, depending on the rigging application
• Designed for precision rigging, controlled lifting, and smoother load management
• Ratchet straps and dead-eye sling included for secure basal mounting
• Break-tested and engineered with a 5:1+ safety factor
• Built and field-tested in the USA by professional arborists
• Scannable QR code for support resources available for setup instructions, manuals, and educational content
• Intended for use in accordance with ANSI Z133 safety practices

Specs

• Harken Radial 40 Dual-Speed Self-Tailing Winch
• Approximate Mechanical Advantage Ratios: 13.5:1 / 39.9:1
• Winch Rope Capacity: 1/2”
• Winch Working Load Limit: 1,500 lbs
• Fixed Bollard Rope Capacity: 5/8”
• Bollard Working Load Limit: 2,500 lbs
• Approximate System Weight: 30 lbs
• Length: 18.5”
• Width: 7 1/4”
• Plate Height: 2”
• Bollard Height: 7”
• Total Height: 9.5”
• Mounting Configuration: Vertical or Horizontal
• Includes: Hold Fast XL Rigging System, Harken Radial 40 ST Winch, Fixed Bollard, Ratchet Straps, 5/8” Dead-Eye Sling, Winch Handle
• Manufacturer: Hold Fast Rigging
• Country of Manufacture: USA
• MPN: HF-Xl-28B
