Hold Fast OG Rigging System
SKU HF100
$1,999.95
New!
Designed to be light and portable, the original HOLD FAST Rigging System combines the mechanical advantage of a self-tailing Harken winch with the strength and stability of a fixed bollard for simultaneous lifting and lowering capabilities.
In stock: 1 available
1
Hold Fast OG Rigging System
Product Details
UPC: 884400254931
Brand: Hold Fast Rigging
CUSTOM_SKU: HF100
FREE SHIPPING IN HAWAII!!

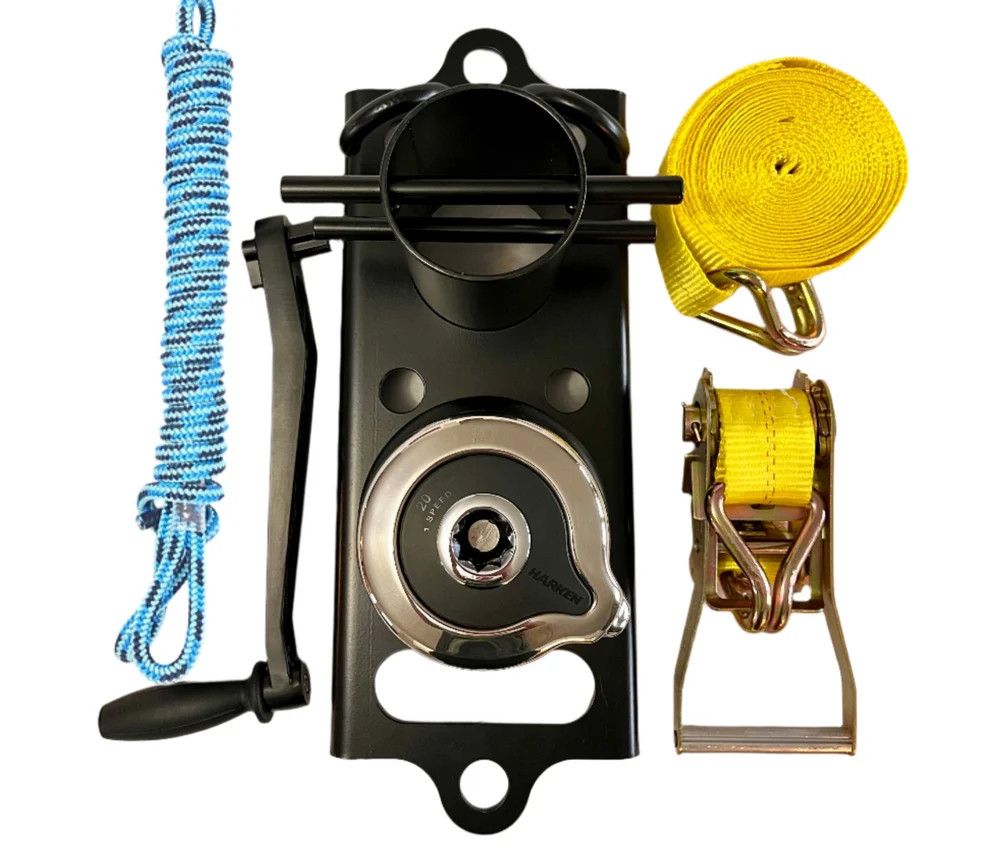

Kit includes:
- 1) Hold Fast OG Rope Management System
- 1) Dead eye sling (Color Varies)
- 1) Ratcheting strap
- 1) Winch Handle
Details
- Developed by working arborists to address everyday complex rigging challenges
- Integrates a Harken Radial 20 self-tailing winch with a fixed bollard mounted on a compact steel rigging plate
- Allows simultaneous lifting and lowering operations from one streamlined system
- Accepts either one rope or two separate ropes simultaneously for increased rigging versatility
- Strategically placed fairleads help properly align running lines while supporting additional rigging accessories
- Compact and lightweight design allows for fast deployment and efficient setup in the field
- Powder-coated finish for durability and corrosion resistance
- Special bollard coating helps ropes run smoothly and cleanly during lowering operations
- Mounts vertically or horizontally, depending on the rigging application
- Designed for precision rigging in tight drop zones and when working over roofs, fences, and obstacles
- Ratchet straps and dead-eye sling included for secure basal mounting
- Break tested and engineered with a 5:1+ safety factor
- Built and field-tested in the USA by professional arborists
- Scannable QR support resources available for setup instructions, manuals, and educational content
- Intended for use in accordance with ANSI Z133 safety practices
Specs
- Harken Radial 20 Self-Tailing Winch
- Approximate Mechanical Advantage: 19.2:1
- Winch Rope Capacity: 1/2”
- Fixed Bollard Rope Capacity: 9/16”
- Bollard Working Load Limit: 2,000 lbs
- Approximate System Weight: 18 lbs
- Plate Construction: 1/4” Steel
- Length: 18”
- Width: 6 3/4”
- Plate Height: 1.5”
- Bollard Height: 6”
- Total Height: 7.5”
- Mounting Configuration: Vertical or Horizontal
- Includes: Hold Fast OG Rigging System, Harken Radial 20 ST Winch, Fixed Bollard, Ratchet Straps, Dead-Eye Sling, Winch Handle
- Manufacturer: Hold Fast Rigging
- Country of Manufacture: USA
- MPN:HF100
