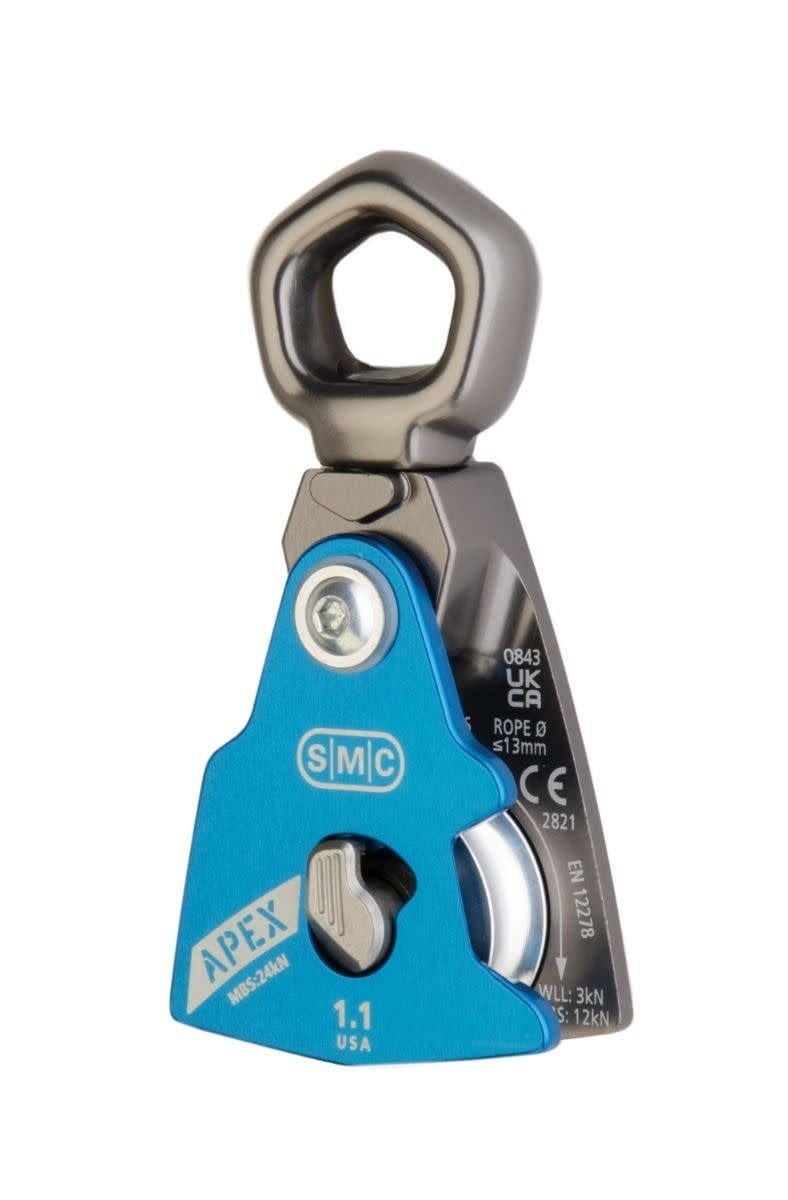

APEX 1.1" Swivel Pulley

This smaller sized Apex Swivel Pulley offers both easy one-handed operation and unmatched security. The Apex is a mid-line attachable pulley that secures the rope using a low-profile, patented, triple-action lock mechanism. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate. Simply closing the side-plate re-engages the lock mechanism and solidly secures the rope. The operation is intuitive and ergonomic. The Apex features symmetrical side-plates which are optimized for integration with prusik-based progress capture systems. This streamlines system set-up and minimizes the possibility of mis-rigging. The swivel eye on the 1.1" was designed to accommodate a single carabiner. It is also soft-goods-compatible for situations where you want to eliminate the carabiner. The U.S. made Apex Pulley line represents the new standard for rescue, rope access, or arborism.

Model #: NFPA165020

Dimensions: 4.75”x2.34”x1.13” (121mm x 59.47mm x 28.7mm)

Weight: 6.7oz / 190 grams

Material: Aluminum

Finish: Anodized

3 Sigma test: MBS 5395 lbf (24kN)

NFPA T Certified / CE / UKCA

Made In USA
